ECO
Bomb Calorimeter
| 재현성 | 0.1 %(%RSD) |
|---|---|
| 해상도 | 0.001(MJ/Kg) |
| 온도해상도 | 0.000001 ℃ |
| 분석횟수 | 2회/시간당 |
| 응용분야 | 폐기물, 우드팰릿, 오일, 식품 등 기타 발열량 측정 분야. |
| 첨부1 | ECO 카다로그 |
Features
| ◇ | Ideal for low volume application up to 2 sample per hour with one vessel. Maximum 16 samples per day |
| ◇ | No water required |
| ◇ | Inexpensive |
| ◇ | No operator attention required during analysis, the LCD display prompts the operator and displays faults and progress |
| ◇ | Uses the proven CAL2k-4 Intelligent vessel |
| ◇ | Small and compact |
| ◇ | Uses a standard PC keyboard (PS2) |
| ◇ | Result retrieval connected to a PC, using the supplied Windows Operating Software |
| ◇ | Stores 1024 results and other variables |
| ◇ | Sample identification is settable and self-incrementing |
| ◇ | Vessel temperature can "stream" to a PC for user spreadsheet analysis |
| ◇ | Can use "spiking" for hard to combust samples |
| ◇ | Can connect directly to balance for mass entry, or the mass can be entered via the keyboard |
| ◇ | Built in diagnostic, which is ideal for first hand diagnostic |
| ◇ | Vessels are pre-programmed for 5000 determination cycles before inspection |
| ◇ | Works in BTU/lb, Calories/grams or MJ/Kg |
| ◇ | Precise and reproducible determination of gross calorific values according to ISO 1928, DIN 51900 and BS1016:105 |

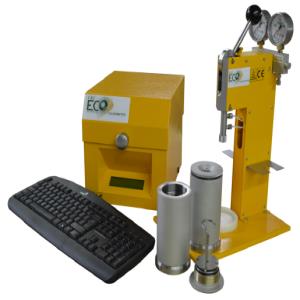

Consists of the following:
ECO Calorimeter
ECO-KT Calorimeter Installation Kit
CAL2k-3 Filling Station
CAL2k-3-KT Filling Station Installation Kit
CAL2k-4 Vessel
CAL2k-4-KT Vessel Installation Kit
